Detailed introduction
The High-Intensity Aviation Obstruction Light with 360° coverage is designed to provide comprehensive visibility for tall structures such as communication towers, chimneys, and high-rise buildings. This aviation light ensures that aircraft can detect obstacles from any direction, offering a full-circle warning signal. With a powerful, continuous white light, it operates 24/7, meeting international aviation safety standards and enhancing the protection of air traffic in low-visibility conditions, including night-time, fog, or adverse weather.
This model incorporates advanced LED technology for high efficiency and extended service life. The energy-saving LEDs are coupled with a precision optical reflector system to provide a broad, uniform beam, reducing power consumption while maintaining effective coverage. The light’s robust construction, made from corrosion-resistant materials like die-cast aluminum alloy and featuring a protective electrostatic powder coating, ensures reliability in challenging environments, including coastal and high-salinity areas.
Additionally, the light is equipped with surge and lightning protection for enhanced durability and reliability in extreme weather conditions. The system also includes an integrated photocell for automatic operation based on ambient light, ensuring it functions seamlessly throughout the day and night. With various optional features such as GPS synchronization, sequential flashing, and alarm relays, this 360° aviation light offers customizable solutions to meet specific safety needs and regulatory requirements.
Overview:

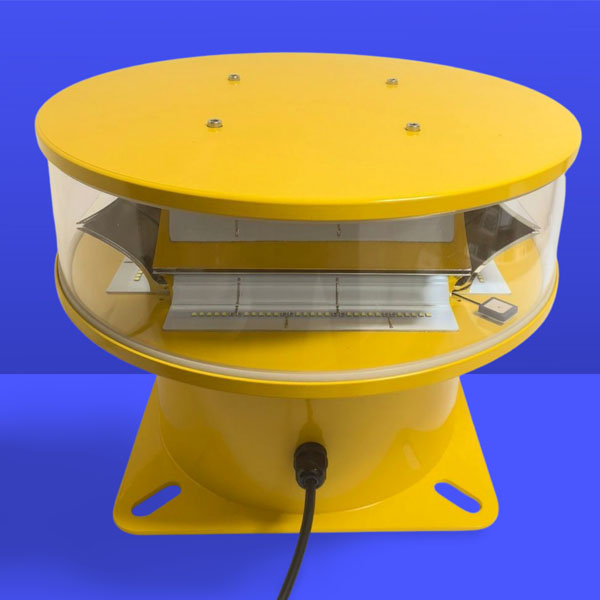

The Aircraft Warning Light L-856, model AO-HI-A2, is a high-intensity obstruction light featuring a 360-degree beam angle, designed to emit bright white light continuously, 24 hours a day. In compliance with ICAO and FAA standards, this light is required for structures 150 meters or higher above ground level, providing a flashing signal at a rate of 40-60 flashes per minute (fpm) for enhanced aviation safety. It utilizes high-performance CREE LEDs as the light source, ensuring consistent quality, exceptional reliability, and an extended operational lifespan.
Compliance:
1. International Civil Aviation Organization (ICAO), Aerodromes, Annex 14, Volume 1, Eighth Edition, dated July 2018
2. FAA L-856.
Features:
1. The light source utilizes advanced LED technology, with a dual-layer PCB design that enhances heat dissipation, reduces energy consumption, and boosts efficiency.
2. The high-precision optical reflector also features a two-layer design, effectively directing the light beam within the required range while minimizing power usage.
3. The protective cover of the obstruction light is uniquely designed and constructed from UV-resistant polycarbonate for durability and protection against environmental factors.
4. The housing is made from robust die-cast aluminum alloy and coated with a yellow electrostatic powder finish, providing superior resistance to vibration and corrosion.
5. A waterproof silicone seal structure ensures reliable protection against water ingress.
6. A professional EMC design is incorporated to safeguard the system from electromagnetic interference, ensuring stable performance.
7. The light is equipped with an integrated photocell, enabling automatic operation based on ambient light levels during the day, twilight, and night.
8. Built-in surge and lightning protection ensures the light remains operational in the event of electrical surges or storms.
9. A variety of optional features are available, including GPS-synchronized flashing, sequential flashing, alarm relays, and more, offering customizable solutions for specific applications.
Specification:
|
Product Name |
High intensity aviation obstruction light 360 degree aviation light for towers |
|
Mode NO.: |
AO-HI-A2 |
|
Color: |
White |
|
Light source:
|
CREE LED |
|
Light Intensity(cd): |
200,000cd±25%(Daytime), 20,000cd±25%(Twilight) , 2,000cd±25 (Night) |
|
Horizontal Output(degrees): |
360 degree |
|
Vertical Divergence(degrees): |
5 degree |
|
Flashing Characteristics:
|
40-60FPM
|
|
Operation Mode: |
24 hours operation, 3 different modes |
|
Input: |
100-240VAC 50-60Hz, 12-48VDC(Details contact us) |
|
Power Consumption(W): |
Average Power consumption<80W |
|
Circuit Protection: |
Integrated |
|
Obstruction Light Material: |
PC cover, ABS reflector and Powder coated die-casting aluminum base. |
|
Weight(kg): |
15kg |
|
IP Grade: |
IP66 |
|
Work environment: |
-50℃~+60℃, Humidity 0%-100% |
|
Optional functions(Separate charges): |
1. GPS Sync Flashing， 2. infra-Red (IR) light for NVG 3. Mounting bracket 4. Other functions etc. |

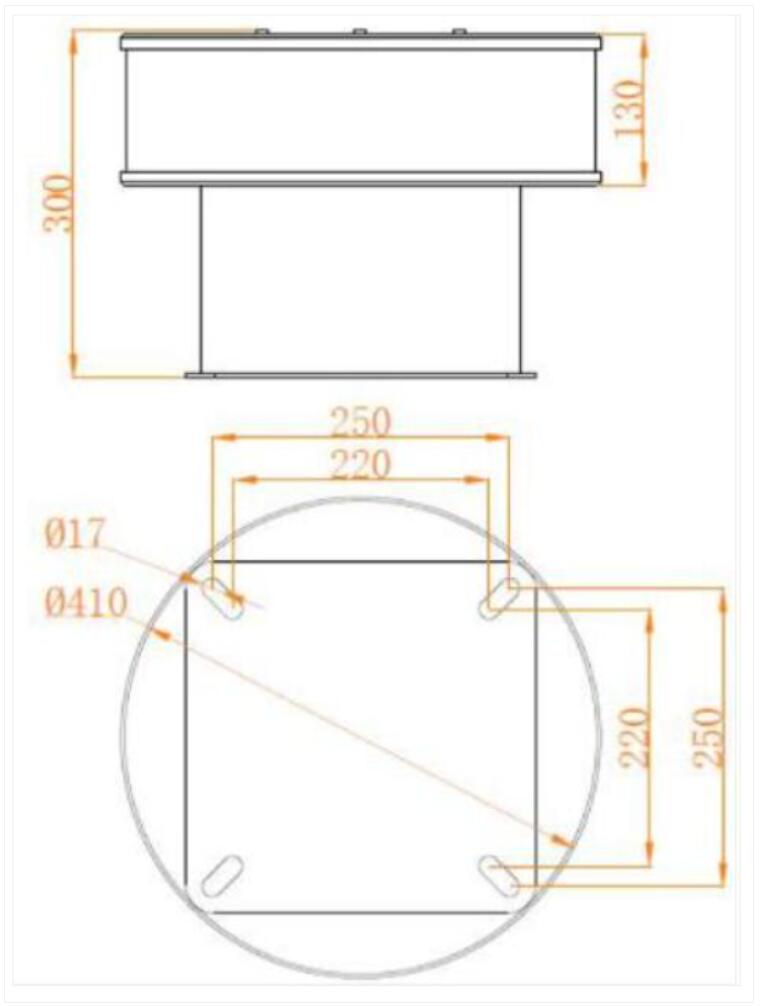

Dimension & Installation:
Applications:
The High-Intensity Aviation Obstruction Light with 360° coverage is designed to enhance aviation safety by marking tall structures such as communication towers, skyscrapers, and chimneys. This light emits bright white illumination 24/7, ensuring high visibility for aircraft in all weather conditions. The 360° beam angle provides full coverage, making it visible from every direction. Equipped with advanced LED technology, it offers long service life and energy efficiency. Built to withstand harsh environments, including coastal and high-salinity areas, it ensures reliable operation and compliance with aviation safety standards.
